MBS Type Rod Mill

E-mail: sales@hxjq.com
MSN: hxjq@hxjq.cn
Tel: 0086-371-67833161
Yahoo: hongxingmachinery@yahoo.com

Rod mill has dry and wet two types to choose, user could choose depend on the fact. The company uses the advanced output controllable technology.

Features
Inquiry

Rod mill has dry and wet two types to choose, user could choose depend on the fact. The company uses the advanced output controllable technology, with the face milling material set the suitable miller, change the traditional surface contact into line contact, make the output granularity evener, high product, widely used in chemical industry, metallurgy, glassed industry, and the high rquirement of the evenness for milling after milling, sand making of building sand in recent years.

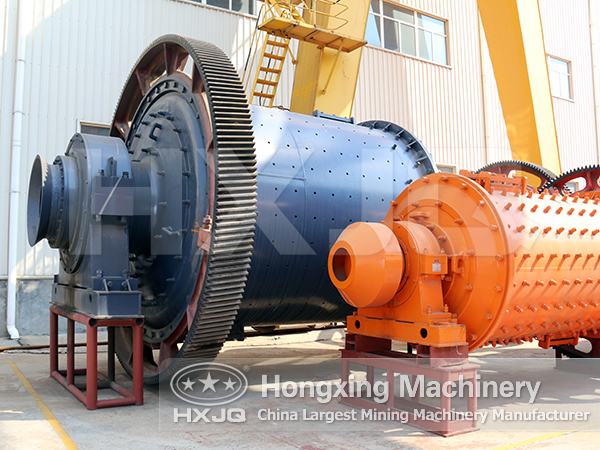

rod mill

Technical parameters

Model	Shell Specifications （mm）		Shell rotation speed （r/min）	Feeding size (mm)	Discharging size (mm)	Processing capacity (t/h)	Power (kw)	Total weight (t)
Model	Diameter	Length	Shell rotation speed （r/min）	Feeding size (mm)	Discharging size (mm)	Processing capacity (t/h)	Power (kw)	Total weight (t)
MBS0918	900	1800	36-38	≤25	0.833-0.147	0.62-3.2	18.5	5.9
MBS0924	900	2400	36	≤25	0.833-0.147	0.81-4.3	22	6.7
MBS1224	1200	2400	36	≤25	0.833-0.147	1.1-4.9	30	13.9
MBS1530	1500	3000	29.7	≤25	0.833-0.147	2.4-7.5	75	19.8
MBS1830	1830	3000	25.4	≤25	0.833-0.147	4.8-11.6	130	34.9
MBS2130	2100	3000	23.7	≤25	0.833-0.147	14-35	155	46.5
MBS2136	2100	3600	23.7	≤25	0.833-0.147	19-43	180	48.7
MBS2430	2400	3000	21	≤50	0.833-0.147	25-65	245	59.7
MBS2736	2700	3600	20.7	≤50	0.833-0.147	32-86	380	92.5
MBS2740	2700	4000	20.7	≤50	0.833-0.147	32-92	400	95
MBS3245	3200	4500	18	≤50	0.833-0.147	64-180	630	149
